Cabinet and Cupboard Accessories

Cabinet and Cupboard Accessories

cubio | Accessories Internal Options

To create a fully functioning cubio cabinet or cupboard, choose from a selection of internal fittings including perfo and louvre backpanels, hanging rails, base decks, drawer kits, shelves and internal worktops.

cubio - Backpanels

Perfo and louvre backpanels to fit to rear of 800mm, 1050mm and 1300mm wide housings.
Panels may be fitted at any height point within the housing and may be of mixed style and height.

The table below shows the panels required to provide a full height backpanel. Choose the overall height of back panel required and order the individual items. Shelves may be used in front of panels, but drawers must be used either above or below them.

Panel Height Panels per Cupboard Height
800mm 1000mm 1200mm 1600mm 2000mm
350mm 2 2 2 2
400mm 1 2 3
450mm 2

cubio - Hanging Rails

Suitable for all cupboard door styles, the rail position may be adjusted on a 25mm vertical pitch and horizontally on a 100mm pitch.
The hanging rail kit is supplied with 6 hooks. Standard clothes hangers may be used on the 650mm deep model.

cubio - Infill Base Deck

Infill galvanised steel base shelves to provide a flat surface for easy loading and unloading.

cubio - Drawer Kit

125mm or 175mm high drawers with 75kg or optional 200kg U.D.L. capacity on smooth action roller bearing slides. Adjustable on a 25mm vertical pitch.Supplied in powdercoat RAL7035 light grey finish only. A range of dividers are available.

cubio - Sliding Shelves

Sliding shelf with 75kg or optional 200Kg U.D.L. capacity on smooth action roller bearing slides. 50mm high adjustable on 25mm vertical pitch. Supplied in powdercoat RAL7035 light grey finish only.

cubio - Steel Shelves

Durable, scuff resistant galvanised steel shelves with 160kg U.D.L.capacity on 1300mm wide models*, 100kg on all others.
Shallow shelves for 650mm deep models are 343mm deep and may be used in conjunction with louvre doors and hook on bins.
All shelves are adjustable on 25mm vertical pitch.
*1300 x 650 shallow shelf has 100kg U.D.L.

cubio - Multiplex Shelf / Worktop

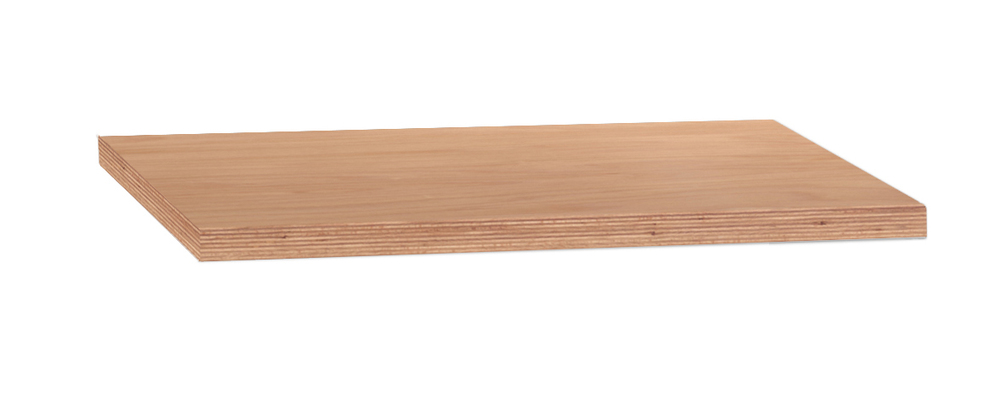

25mm multiplex (laminated beech ply) shelf or worktop. 593mm deep for 650mm deep models. Up to 80kg U.D.L. capacity.

verso | Accessories Internal Options

To create a fully functioning verso cupboard or cabinet, choose from a selection of internal fittings including perfo and louvre backpanels, hanging rails, drawer kits, shelves and worktops.

verso Backpanels

Steel internal panels for the rear of the 2000mm high x 550mm deep cupboards.
Available in perfo (for tools) and louvre (for bins). Each panel is 457mm high. Up to four panels may be fitted in each cupboard.

verso - Hanging Rails

Three position hanging rail kit for use in 550mm deep cupboards. Adjustable vertically on a 25mm pitch.

verso - Drawer Kit

100, 125mm or 175mm high drawers with 75kg capacity on smooth action roller bearing slides. A range of dividers are available. For 550mm deep cupboards only

verso - Steel Shelves

Durable, scuff resistant galvanised steel shelves with 75kg U.D.L.capacity. All shelves are adjustable on 25mm vertical pitch.

verso - Multiplex Shelf / Worktop

25mm multiplex (laminated beech ply) shelf or worktop, adjustable on a 25mm pitch. 75kg U.D.L. capacity.

cubio | Accessories External Options

40mm thick Multiplex or Lino worktops are available for all cubio cabinets and cupboards, as well as top tray options. Optional fork lift bases make light work of moving heavy cupboards and enclosed fixed height base kits are also available.

cubio - Base Plinth

Totally enclosed 50mm base plinth. Suitable for total loads of up to 1.5 tonnes. Supplied in RAL7035 light grey only.

cubio - Base Plinth / Forklift Base

100mm high base plinth incorporating fork lift channels. Suitable for total loads of up to 1 tonne. Comes complete with a removable faceplate. Supplied in RAL7035 light grey only.

cubio - Cabinet / Cupboard Worktops

40mm worktop for the top of the housing. Available in Multiplex (laminated beech ply) or Lino (2mm grey linoleum worksurface bonded to a wooden core).
Metal top tray with 4 raised sides to prevent accidental roll off of items. Inlaid is a quality slip resistant mat. Increases height by 15mm. Supplied in RAL7035 light grey only.

verso | Accessories External Options

30mm thick Multiplex or Lino worktops are available for all verso cabinets and cupboards, as well as top tray options. Lectern tops provide convenient workstation solutions.

Cabinet / Cupboard Worktops

30mm worktop for the top of the housing. Available in Multiplex (laminated beech ply) or Lino (2mm grey linoleum worksurface bonded to a wooden core).
Metal top tray with 3 raised sides to prevent accidental roll off of items. Inlaid is a ribbed rubber mat. Increases height by 15mm. Supplied in RAL7035 light grey only.

verso - Lectern Top

Writing top unit with integral pen tray and front lip. 130mm high at the rear.
